Move waters tanks so they are positioned over the axels. The water tanks are one of the most heaviest items in the build. think of getting a bigger tank than 50 gallons design a front kitchen to take advantage of the v nose  shape Websites: https://www.hensley-homes.com/properties/20ft.-custom-toy-hauler

Read More
Core
Layout
Notable Picks

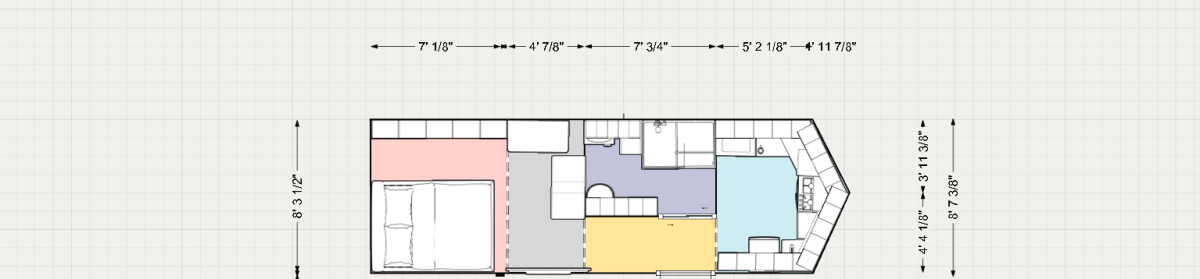

Your image shows: A V‑shaped front layout for water tanks A bathroom zone directly behind it Shower on one side Toilet on the opposite side Tank depth around 3’11” Total front section tank depth 8’5″ Another tank 3’11” behind the bathroom This is perfectly aligned with your trailer’s: 8’5″ V‑nose width 18″ V‑nose depth 4’5″

Read More
Core
Working interior & axes
Notable Picks

Working interior & axes Finished width: 97″ (X = 0″ driver wall → 97″ passenger wall) Total length (with V): 254″ (Y = 0″ nose point → 254″ rear) Rectangular box starts: Y ≈ 18″ 1. Front bench / tank cabinet (under the “seating” concept) This is your front wrap cabinet that visually acts like

Read More
Core
Tanks
Notable Picks

Tank specs we’ll use for planning 50 gal fresh – T5000BPK Brand: classAcustoms https://www.amazon.com/T5000BPK-Drinking-Showering-Motorhomes-Concession/dp/B0GHT3WMVD Capacity: 50 gallons Material: Polyethylene Dimensions: Length: 14.25″ Width: 22.25″ Height: 38.25″ 30 gal grey – T3000-BPK (×2) Brand: classAcustoms https://www.amazon.com/T5000BPK-Drinking-Showering-Motorhomes-Concession/dp/B0GHT9BC2W/ Capacity: 30 gallons (each) Material: Polyethylene Dimensions (each): Length: 12″ Width: 17.5″ Height: 34.5″ How I’ll orient them by default

Read More
Core
Finished interior dimension spec – for planning & layout
Notable Picks

📐 WORKING INTERIOR SPACE Rectangular Interior (Finished After Front/Back Wall Build‑Up) Length: 19′ 8″ (This is the 20′ interior minus 2″ front wall and 2″ back wall) Width: 8′ 1″ (97″) (This already includes your 2″ per‑side wall build‑up — no further subtraction) V‑Nose Extension Centerline depth added by V‑nose: 18″ Side wall length from

Read More
Core
The Trailer
Notable Picks

8.5×20 Charcoal Enclosed Trailer with Blackout Package (2) 5200lb Axles Storage   8.5×20 Charcoal Enclosed Trailer with Blackout Package (2) 5200lb Axles Storage 8.5×20 Charcoal Enclosed Trailer with Blackout Package (2) 5200lb Axles Features: Charcoal Screwed Exterior – Durable aluminum exterior with a sleek charcoal finish provides a professional appearance while resisting corrosion, fading, and daily
